Brand: AEM Electronics
Manufacturer's Part Number: 30-0301
Part Type: Gauges
Product Line: AEM Electronics X-Series Pressure Gauges
Automotive Fittings Part Number: AVM-30-0301
UPC: 840879024482
Gauge Type: Oil pressure
OEM Replacement: No
Gauge Style: Digital
Sending Unit: Electrical
Gauge Diameter (in.): 2 1/16 in.
Gauge Diameter (mm): 52mm
Gauge Range: 0-7 bar/0-100 psi
Gauge Shape: Round
Sweep: Digital numeric
Gauge Face Color: Black/Luminescent green
Gauge Number Color: White/Red
Bezel Color: Black
Illuminated: Yes
Memory Recall: No
Playback: No
Liquid-Filled: No
Shift Light Included: No
Tripometer: No

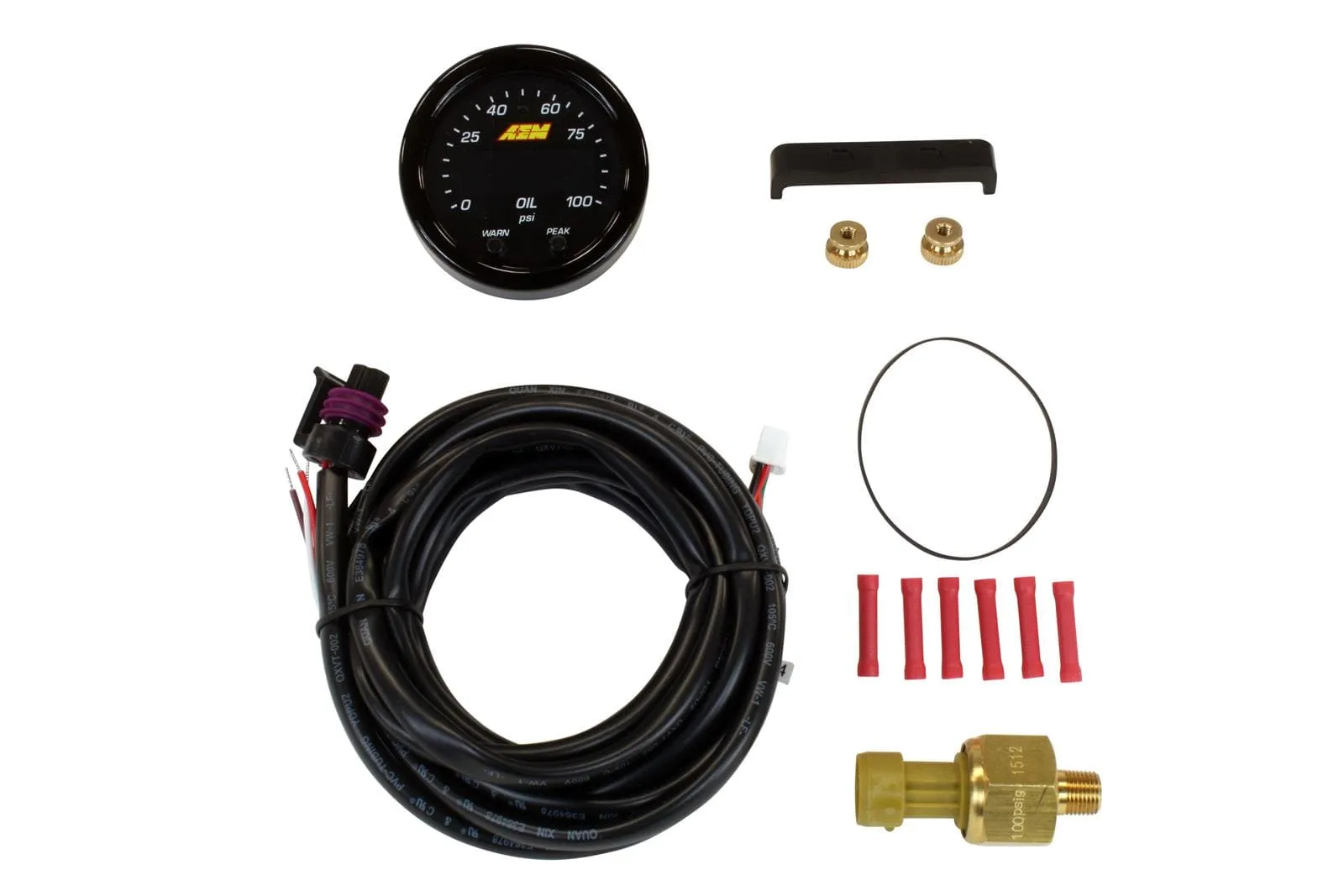

Sending Unit Included: Yes
Remanufactured: No
Quantity: Sold individually.
Notes: Can be used as a fuel pressure gauge with the purchase of an additional faceplate.
Description:

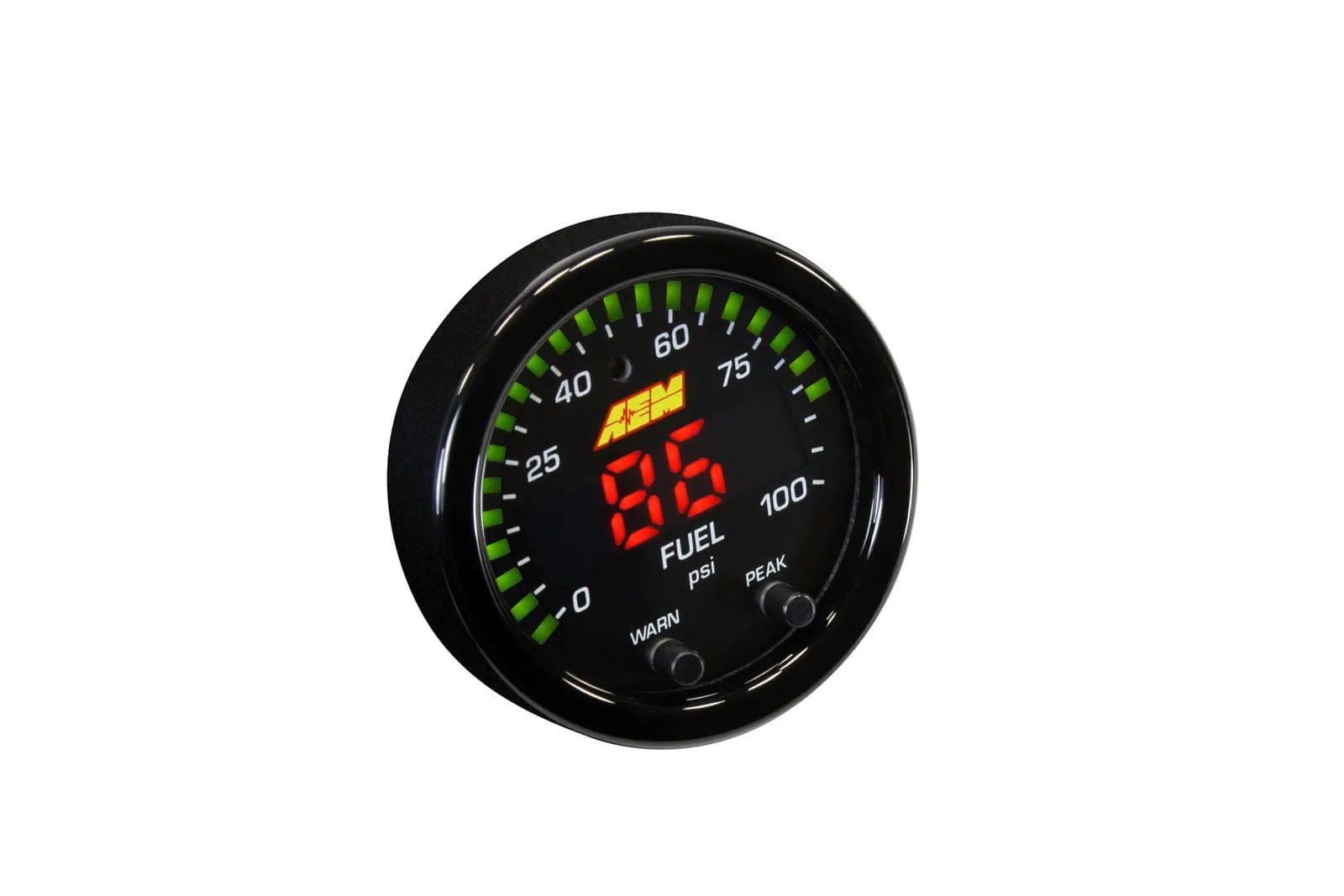

AEM Electronics X-Series pressure gauges display exceptional looks, increased readability, and a multitude of features. Easier to read, mount, and use, they are a must-have for accurate diagnostic, oil, and boost pressure readouts in your high performance vehicle.

Features include:

* Reversible black face (psi/BAR) and black bezel
* Optional silver bezel with black/white faceplate accessory kit available (sold separately; see Suggested Parts tab)
* 2 1/16 in. (52mm) gauge diameter for easy mounting in gauge pods
* Slim 0.825 in. overall gauge depth and 0.200 in. cup depth—mount them virtually anywhere!
* Programmable center LED is 87 percent larger than original AEM gauges
* 24 green outer-edge LEDs offer quick reference to engine parameter
* User-selectable standard or metric display (PSI/BAR)
* Peak/Recall via gauge face buttons
* User-selectable threshold warnings
* AEMnet CANbus-enabled for transmitting data to EMS or data-logger
* 0-5 V analog outputs for transmitting data to EMS or data-logger
* Auto-dimming sensor delivers ideal display brightness
* Positive locking connectors provide secure connection
