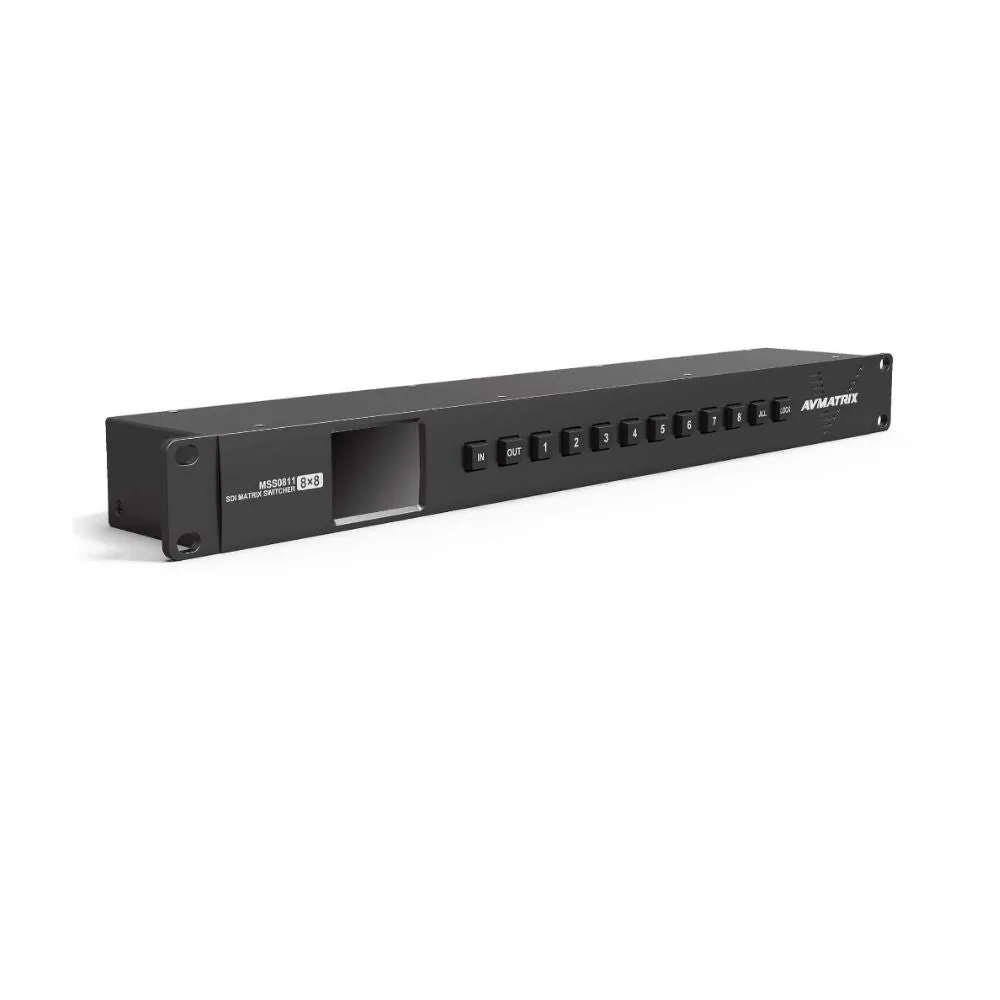

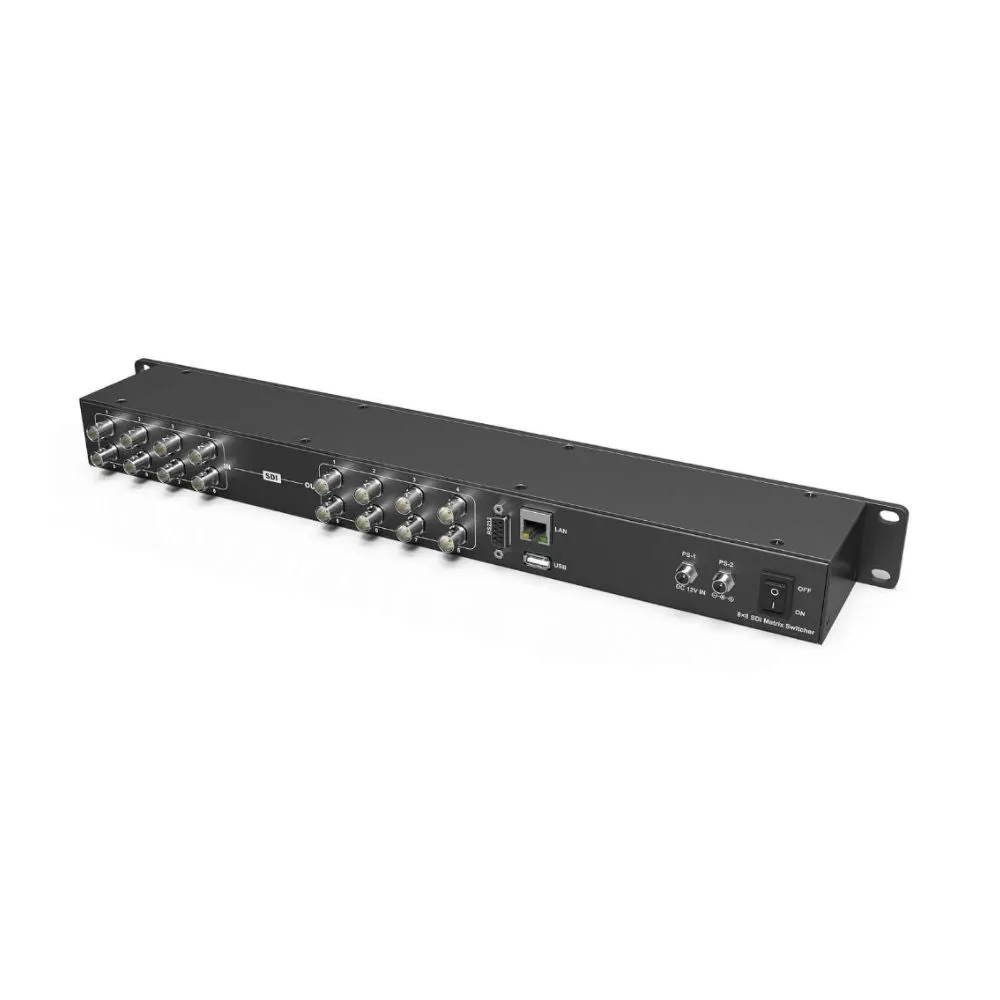

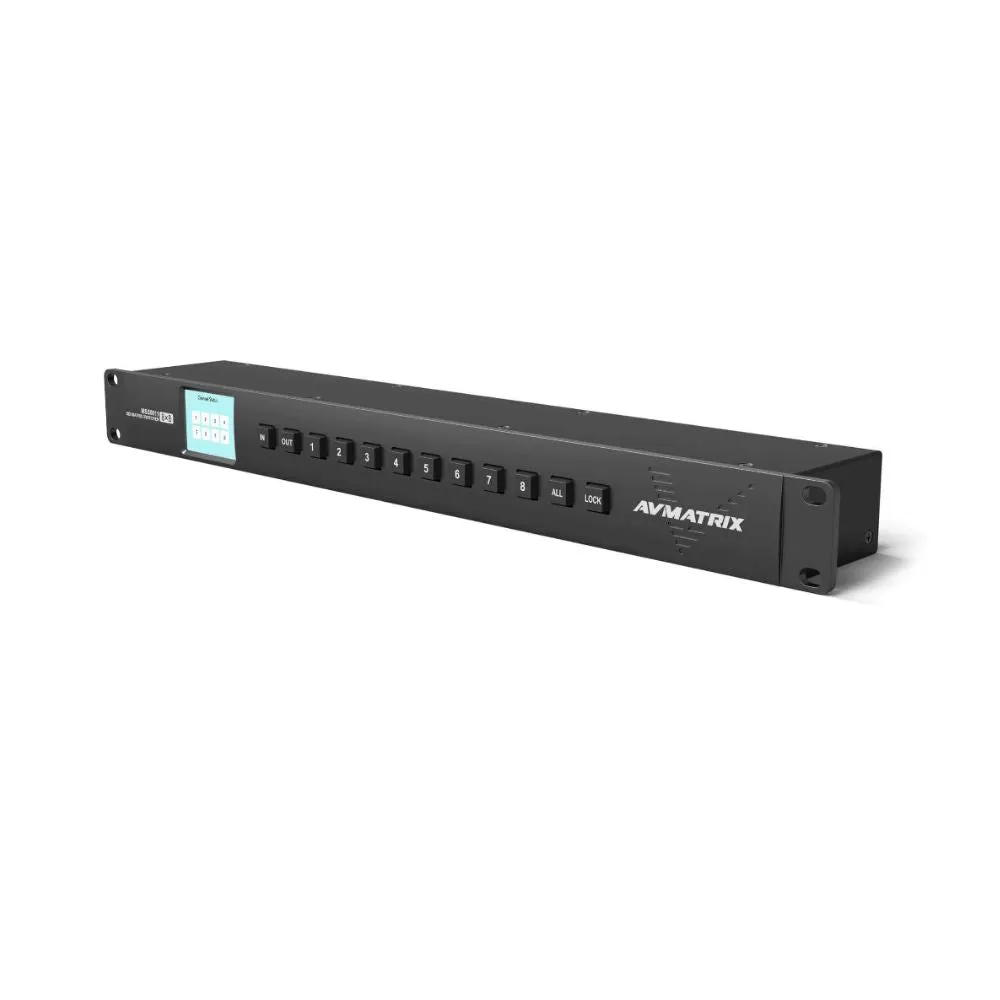

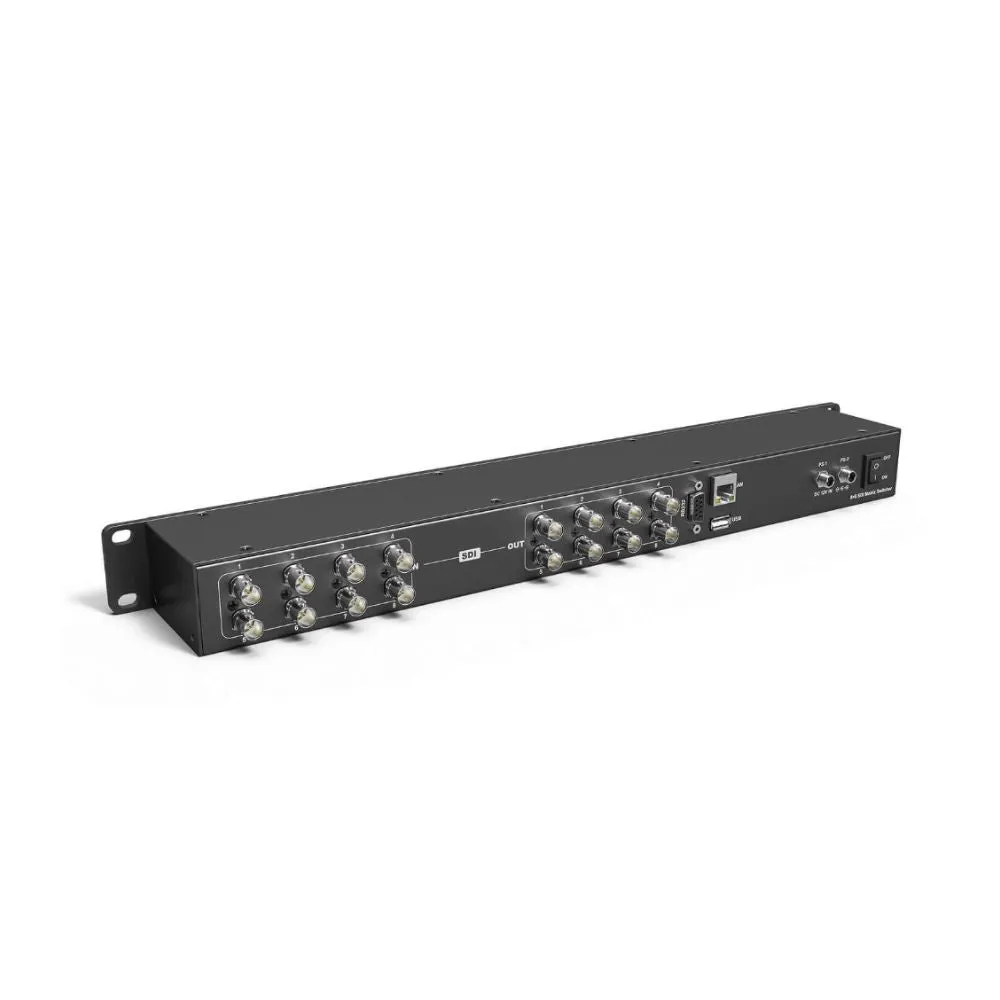

The 1RU 8 x 8 3G-SDI Matrix Switcher from AVMATRIX has 8 inputs and 8 outputs, supports standard 3G/HD/SD SDI rates, automatic bypass of non-standard rates between 20 Mbit/s and 3 Gbit/s, and passes all SDI embedded audio/ancillary data. It’s conveniently control by front panel button, keyboard via USB and PC software via LAN/RS-232.

● Multi-format technology can auto detect multiple video format sources of SD/HD/3G-SDI (level A & B) and DVB-ASI signals at the same time and route the multiple video destinations in NTSC and PAL SD, 720p, 1080 at any frame rate.
● Full control from the front panel
● Current channel status can be viewed visually from the 2.2" LCD screen
● Lock button
● PC control software allows you to connect a computer via Ethernet or via the RS-232 serial port
● USB keyboard
● Redundant power supply
● Compact design

Features:
● 8×3G-SDI inputs, 8×3G-SDI outputs
● SDI input signal auto detection & equalization(DVB-ASI compatible)
● Pass all ancillary data and embedded audio, Level A & B singal supported
● Free PC software control: LAN, RS-232
● Front panel buttons and knob control with lcd display
● Redundant power design

Inclusions:
● 1x 1RU 8 x 8 3G-SDI Matrix Switcher
● 2x 12 VDC, 2 A Power Adapters
