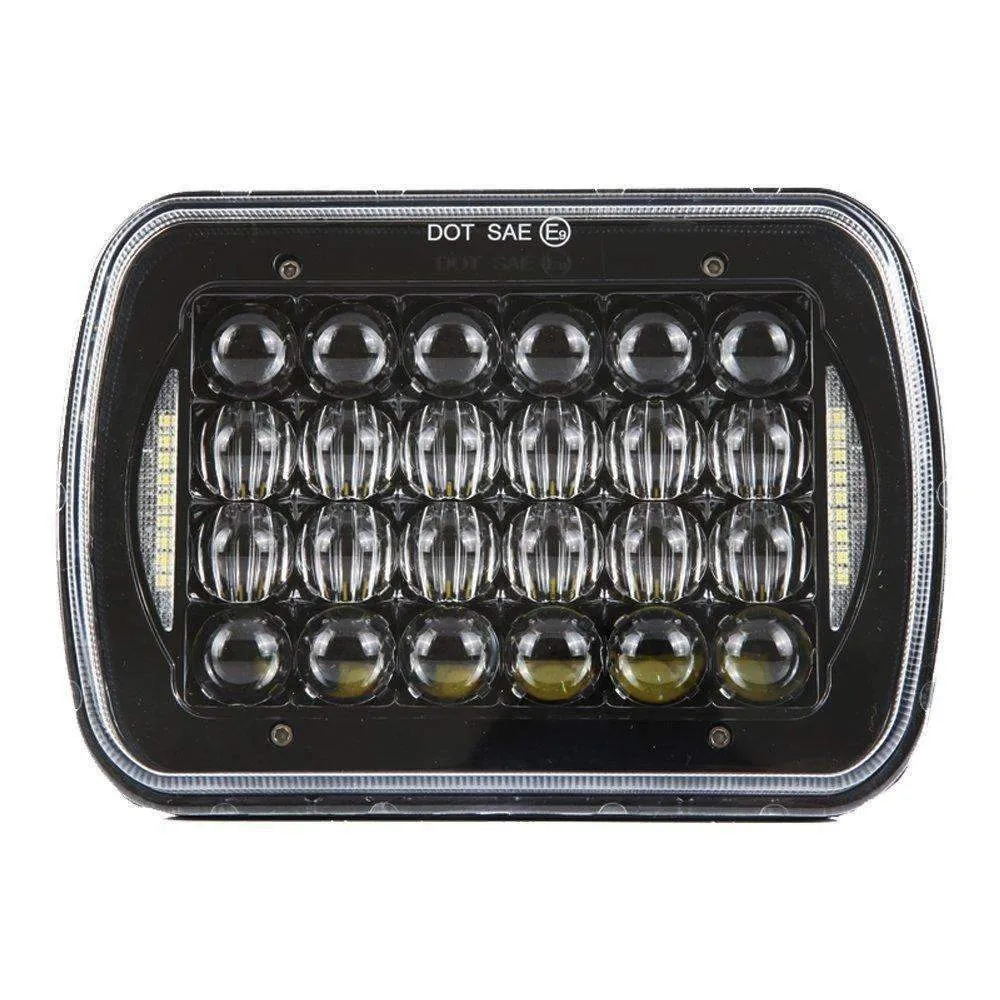

The Eagle Lights 5736B-2 headlight utilizes 36 diodes for intense white light output. The 2 center rows of 12 diodes are the low beam output. The top and bottom row are added in for high beam. DRL function included. Each of the sides uses 6 LEDs each. The DRL function is wired independently from the headlight. Sold as pair.

Replaces stock OEM headlight numbers: H6054 H5054 H6054LL 69822 6052 6053 H6014 H6052

Technical Specifications:

Description 12-24V DOT LED High & Low Beam Headlight with Black Inner Bezel
Height 5.25"
Width 7.4"
Depth 2.67"
Shape Rectangle
Outer Lens Material Polycarbonate Outer Lens
Color Clear
Housing Material Die-Cast Aluminum Housing
Color Black
Bezel Color Black
Retrofits 5 x 7 Sealed Headlights
Minimum Operating Temperature -40 (°C) / -40 (°F)
Maximum Operating Temperature 65 (°C) / 149 (°F) Connector or Wiring
Product Weight 2.4LBS
Lumen Output: 4800 LM (High Beam), 3000 LM (Low Beam)
