50 Watt - 6300 Lumens - 3000 Kelvin - White Trim - Wet Location - 80 CRI - LL10R-30K-WH

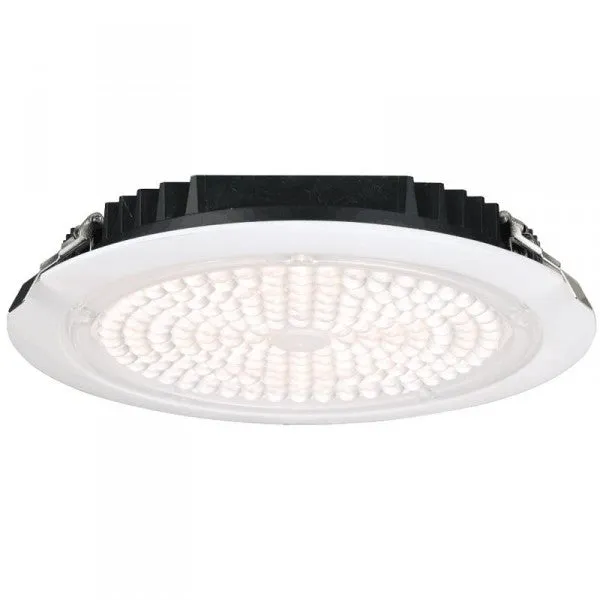

10 Inch ROUND SLIM RECESSED LED FIXTURE 50W

Commercial Grade Fixtures With Glare Control. Built To Last

• Model LL10R
• cULus Listed
• Type IC Rated - Approved for Direct Contact with Insulation
• Air-Tight, Wet Location IP65, Insulated and Non Insulated Ceilings
• 0-10V Dimmable
• 120V-277V and 347V input options
• Warranty: 10 Year on Residential, 5 Year on Commercial Installations
• External Driver Inside Connection Box - No Junction Box Needed

CONSTRUCTION:
Round 10 Inch fixtures with integral LEDs. Isolated external driver factory installed inside connection box. One driver for every fixture required.

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Space in ceiling needed 2 1/4 Inch.

• Default Driver Input Voltage: 120V-277V AC - Dimmable 0-10V
• Optional Driver Input Voltage: 347V AC - Dimmable 0-10V
• Power factor: 0.98
• Energy Used: 50W
• MH / HPS equivalent: 100W
• Beam Angle: 60°
• CRI 80
• Ambient Operating Temperature: -40°F (-40°C) to 104°F ( 40°C)
• Compliance: ULus, certified toCSASTD. C22.2 No. 250.0
• Rated:Type IC(Direct Contact with Insulation),Air-Tight

DIMENSIONS:

• ID 10 Inch; OD 12 Inch
• Cut out: 10 Inch to 11 Inch

Suitable for wet locations.
