6 Inch ROUND REGRESSED 2ND GEN LED LIGHTING FIXTURES 17W
17 Watt - 1150 Lumens - 2700 Kelvin - White Trim - Dimmable - Wet Location - 90 CRI - LL6RR-27K-WH
Commercial Grade Quality With Architectural Design. Open Plenum Rated
- Model LL6RR
- cULus Listed, Energy Starand T24 Certified
- Type IC Rated - Approved for Direct Contact with Insulation
- Air-Tight, Wet Location, Insulated and Non Insulated Ceilings
- Open Plenum Rated
- Superb Light Quality with CRI 90
- Triac Dimmable with most CL dimmers 120V input
- 0-10V Dimmable Option 120V - 347V input
- Warranty: 10 Year on Residential, 5 Year on Commercial Installations
- External Driver Inside Connection Box - No Junction Box Needed
CONSTRUCTION:

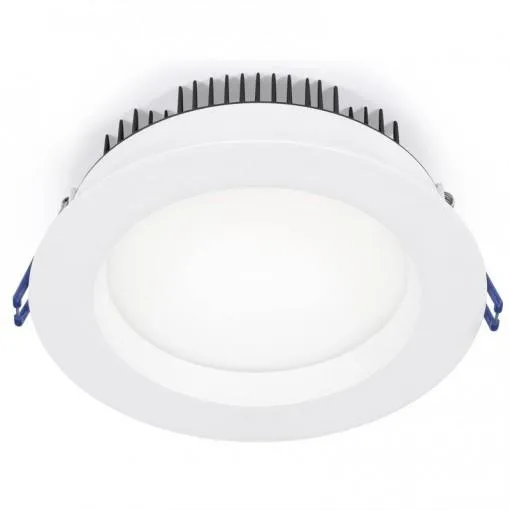

Round 6 Inch Regressed LED fixtures with integral LEDs and built-in driver.
Commercial Grade Quality With Architectural Design.
MOUNTING:
Cut Hole In Ceiling And Snap Fixture In Opening With Attached Spring Clips.
2 1/4 Inch Above Ceiling Clearance Required. Quick connectors Included.
- Default Input Voltage: 120V AC (Dimmable)
- Optional Driver Input Voltage: 277V-347V AC (Not Dimmable)
- Power factor: > 0.99
- Energy Used: 17W
- Halogen equivalent: 100W
- Beam Angle: 95°
- Ambient Operating Temperature: -40°F (-40°C) to 104°F ( 40°C)
- Compliance: ULus Listed
- Rated:Type IC(Direct Contact with Insulation),Energy Star, Air-Tight, T24
DIMENSIONS:
- OD 7 Inch (178 mm); ID 6 Inch (152 mm); Thickness 2 1/4 Inch (56 mm)
- Cut out: 6 Inch to 6 1/4 Inch
Suitable for Wet Locations, Insulated Ceilings & Open Plenum installations.
