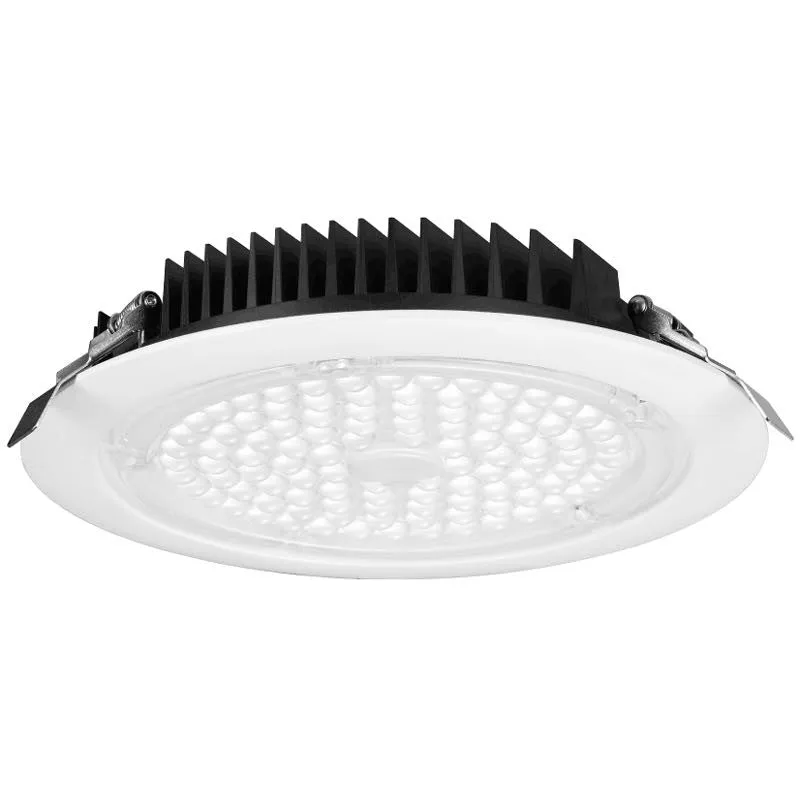

8 Inch ROUND SLIM RECESSED LED FIXTURE 40W

40 Watt - 4500 Lumens - 3000 Kelvin - White Trim - Dimmable - Wet Location - 80 CRI - LL8R-30K-WH

Commercial Grade Fixtures With Glare Control. Built To Last

• Model LL8R
• cULus Listed andEnergy Star Certified
• Type IC Rated - Approved for Direct Contact with Insulation
• Air-Tight, Wet Location IP65, Insulated and Non Insulated Ceilings
• 0-10V Dimmable
• 120V-277V and 347V input options
• Warranty: 10 Year on Residential, 5 Year on Commercial Installations
• External Driver Inside Connection Box - No Junction Box Needed

CONSTRUCTION:
Round 8 Inch fixtures with integral LEDs. Isolated external driver factory installed inside connection box. One driver for every fixture required.

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Space in ceiling needed - 2 1/4 Inch.

• Default Driver Input Voltage: 120V -277V AC - Dimmable 0-10V
• Optional Driver Input Voltage: 347V AC - Dimmable 0-10V
• Power factor: 0.98
• Energy Used: 40W
• HPS / MH Equivalent: 75W
• Beam Angle: 45°
• Ambient Operating Temperature: -40°F (-40°C) to 104°F ( 40°C)
• Compliance: ULus, certified toCSASTD. C22.2 No. 250.0
• Rated:Type IC(Direct Contact with Insulation),Energy Star, Air-Tight

DIMENSIONS:

• ID 7 3/4 Inch; OD 9 1/2 Inch; Thickness 2 1/4 Inch
• Cut out: 8 Inch to 8 1/2 Inch

Suitable for wet locations.
