Product Details
＋

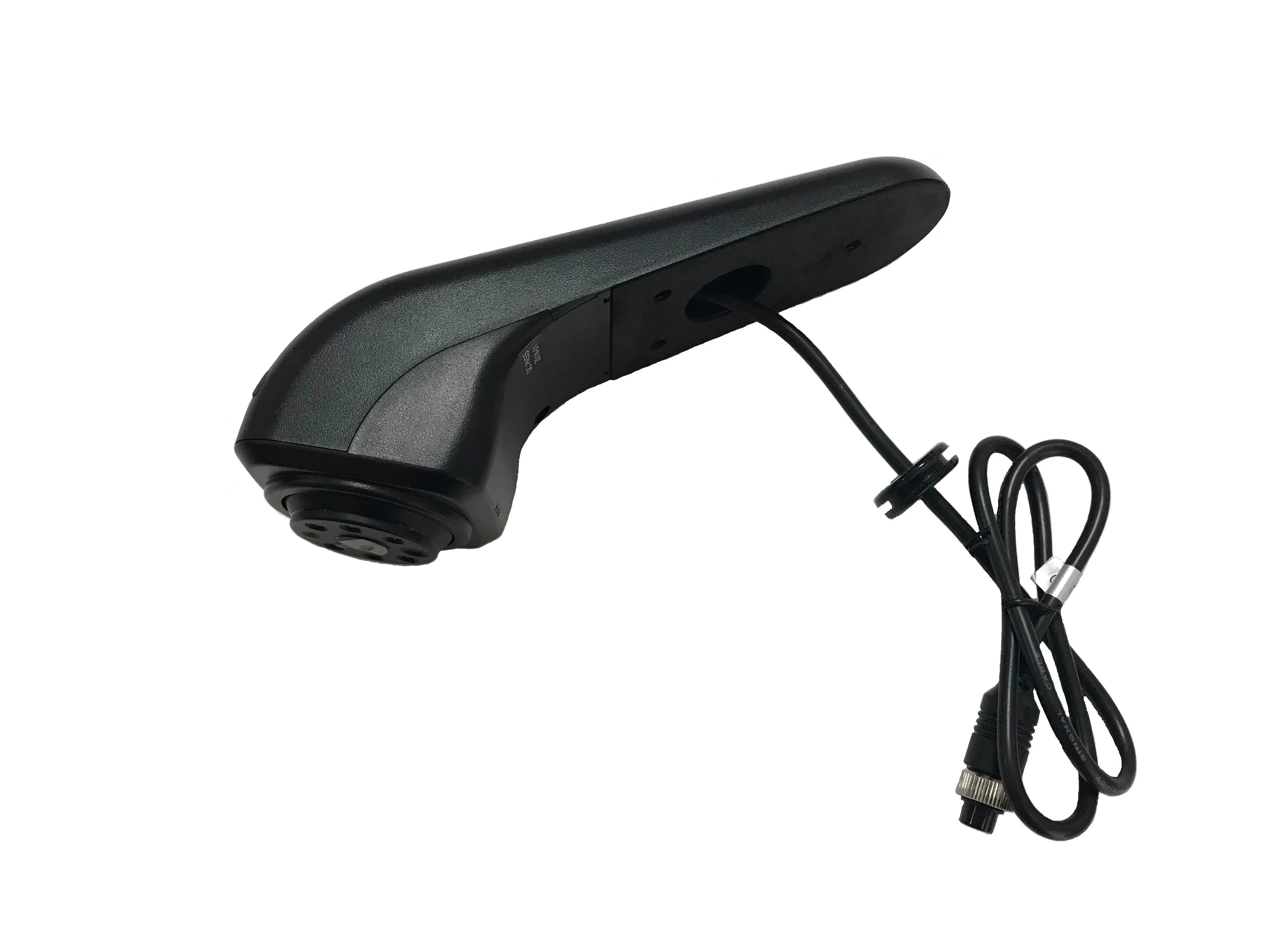

Galinė kamera kamera įmontuota į stabdžių žibintą skirta komerciniam transportui. Tinka VW Crafter 2 ir MAN TGE nuo 2017 metų.
- Sensorius: CMD-III.
- Atparumo standartas IP 68.
- Rezoliucija: 752 x 582 px.
- Kabelio iligis: 10 m.
APRAŠYMAS

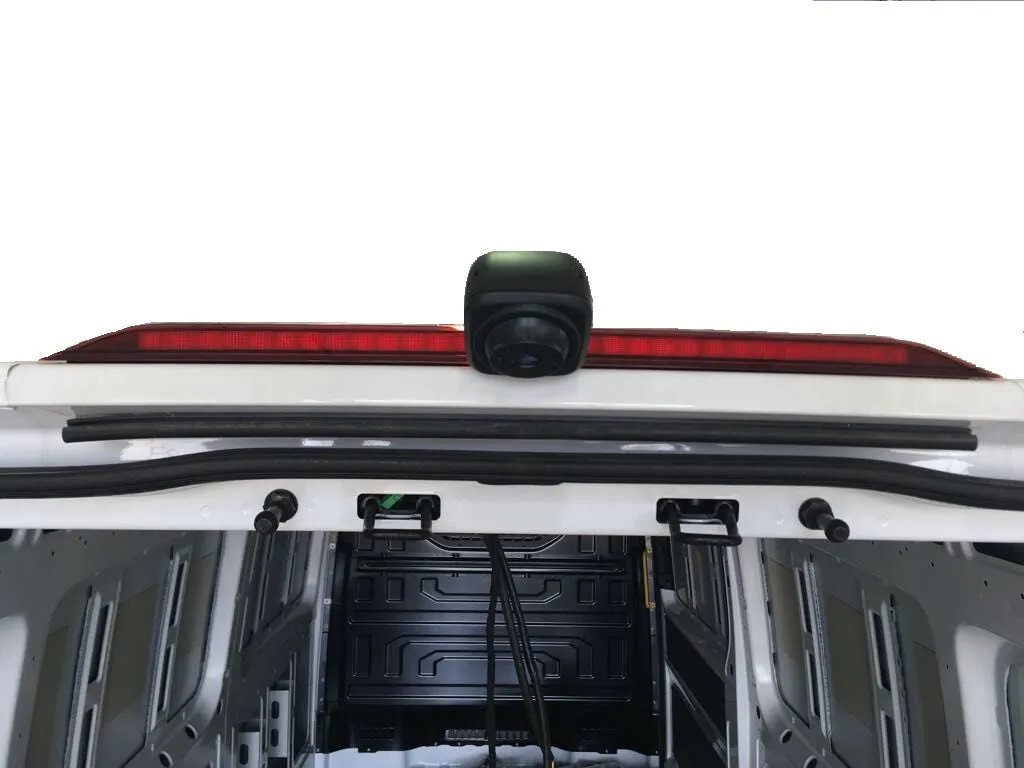

Vehicle-specific mounting rear-view camera with integrated IR-lighting for sufficient light in the dark. Easy assembling on top of the factory brake light. Professional connector cable with enough length and automotive plug connection. Easy to lay the cable due to a small cable diameter.
TECHNINIAI DUOMENYS
TECHNINIAI DUOMENYS
- Camera with vehicle-specific exchange brake light
- Sensor-type CMD-III
- NTSC format (420 TV lines)
- Resolution: 480i (752 x 582 pixel)
- Min illumination: 0 LUX (IR on)
- 6 IR night vision LEDs
- Angle horizontal 120°, svertical 103°, diagonal 133°
- 20° vertical adjustable angle (mechanical)
- Mirroring (fixed)
- Protection class IP68
- Camera colour: black
- 10m extension cable
Compatibility
| Brand | Model |
|---|---|
| Volkswagen | Crafter 2 from model year 2017 |
| MAN | TGE from model year 2017 |
Specifications
| Operating voltage | 9~16V DC |
| Current consumption | <100mA |
| Operating temperature range | -30°C to 70°C |
| Storage temperature range | -40°C to 80°C |
