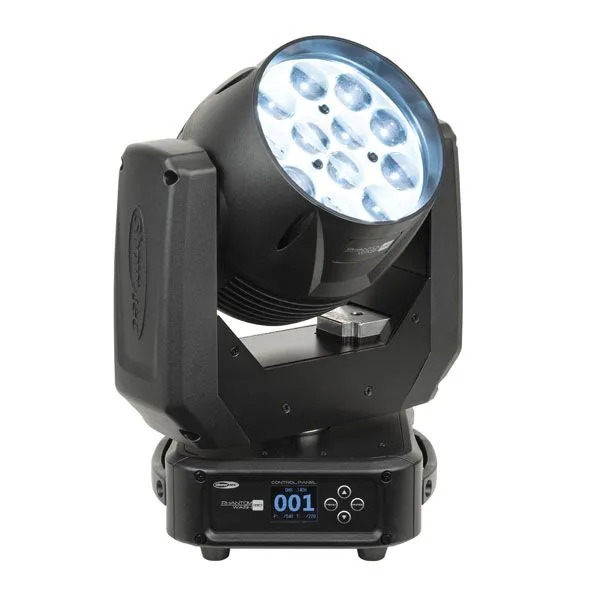

Showtec Phantom 180 Wash

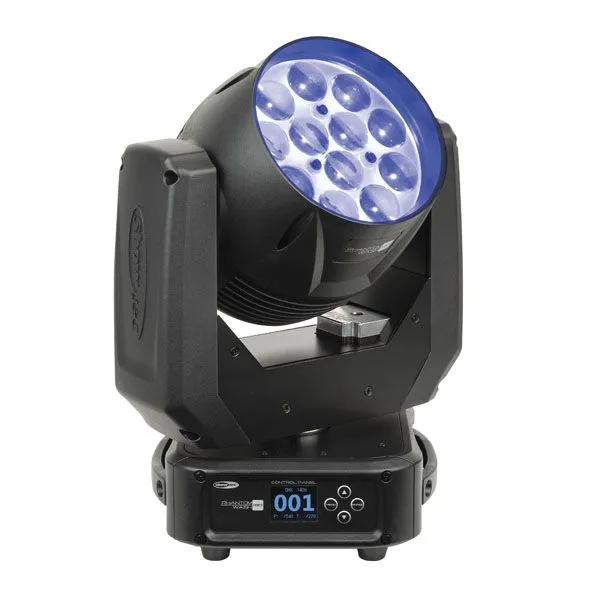

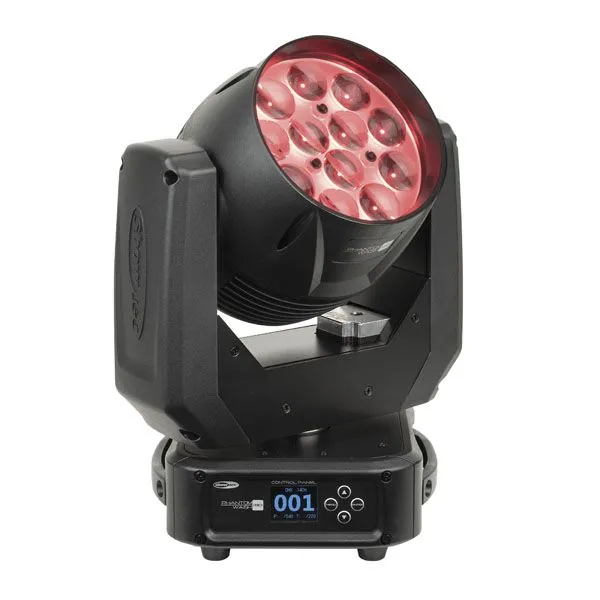

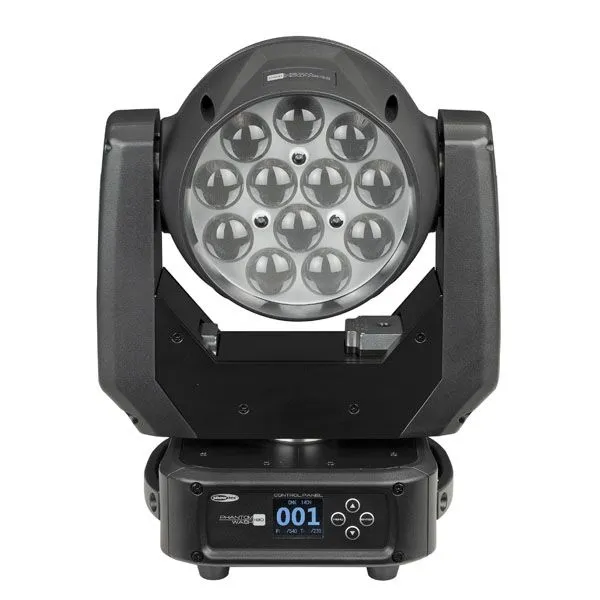

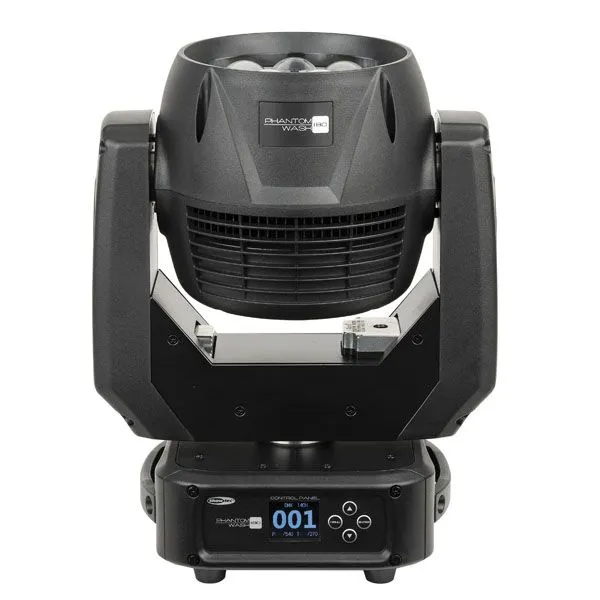

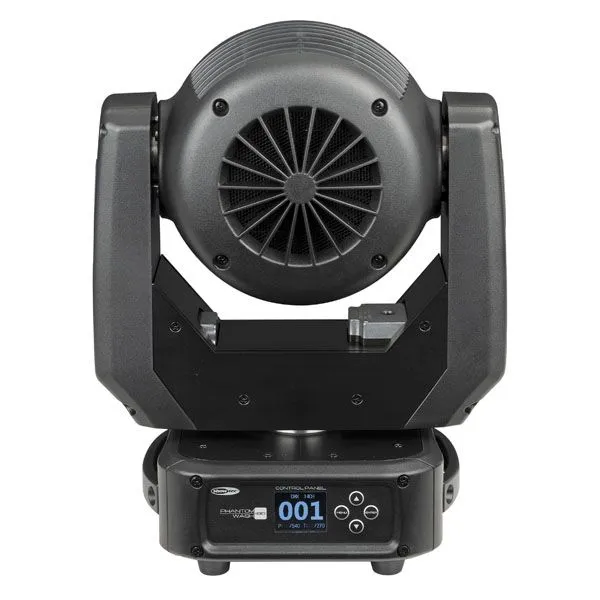

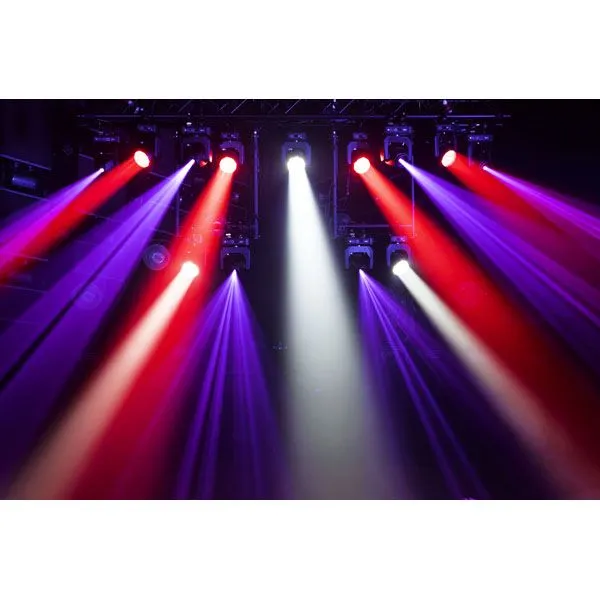

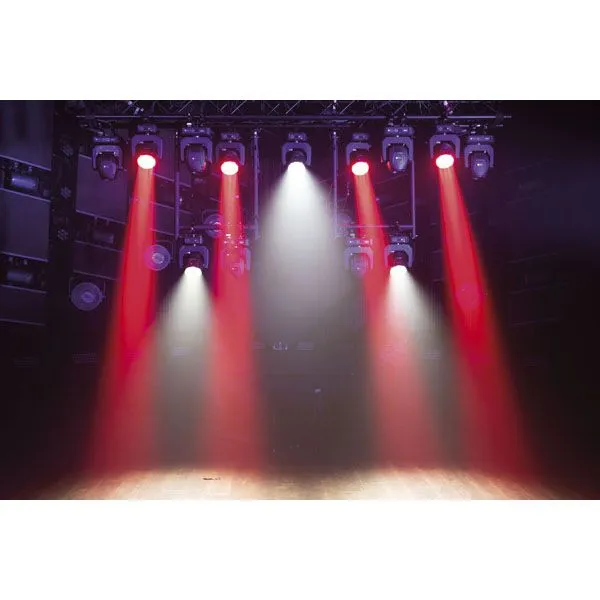

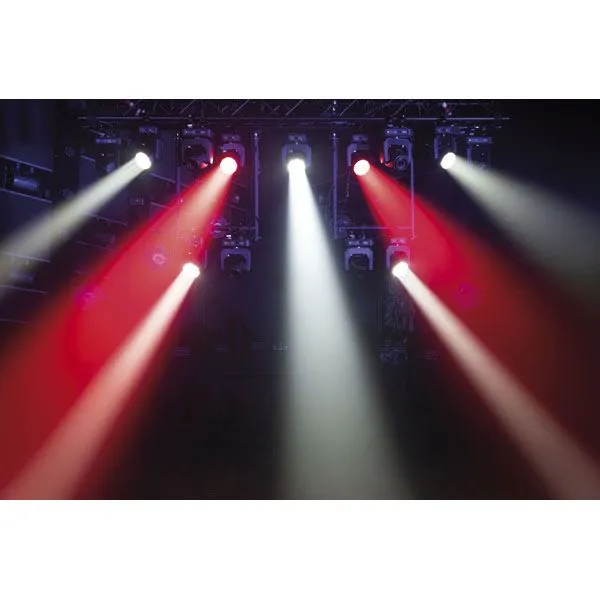

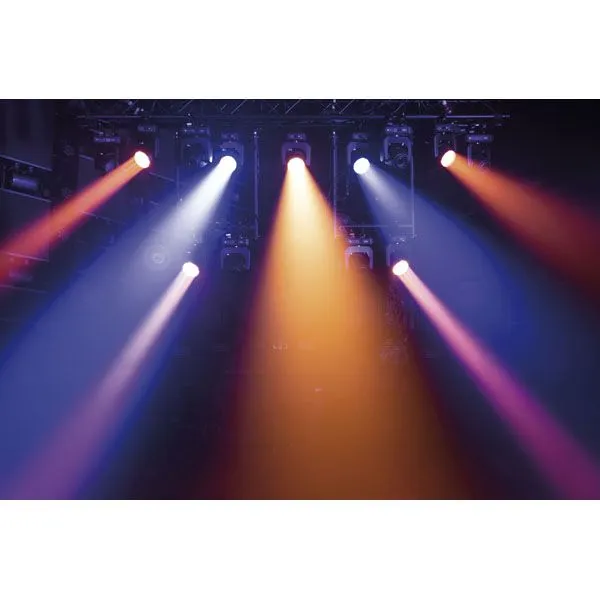

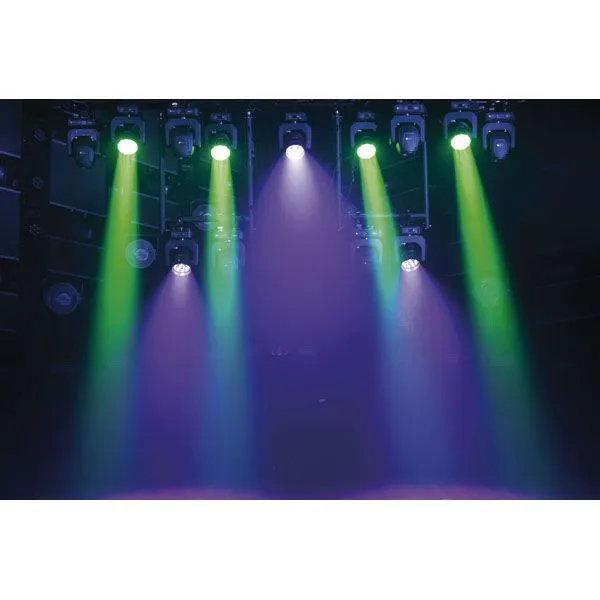

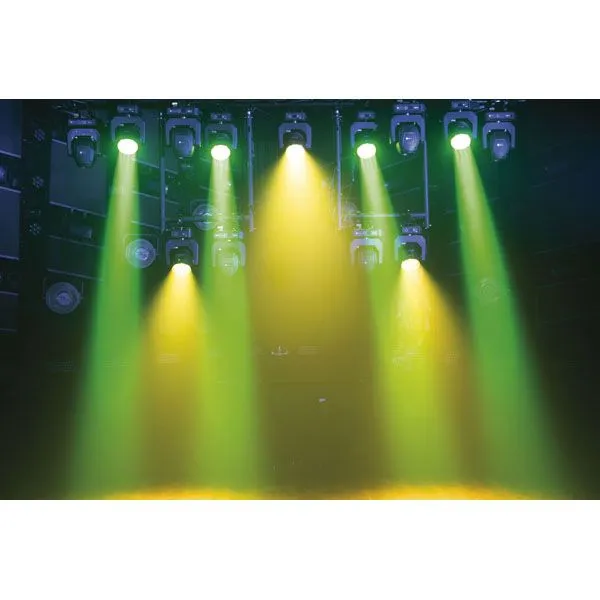

The Showtec Phantom 180 Wash is an RGBW wash moving head with motorized zoom, 7°-50° . It is equipped with 12 powerful 15W RGBW LEDs, divided into 4 separate controllable sections. Dimmable from 0% to 100% and with strobe function onboard from 0 to 20Hz. Pan & tilt movements are precise and very quick and offer various programmable modes.

4 Section control
Pro Power In- & Output
Very fast movement

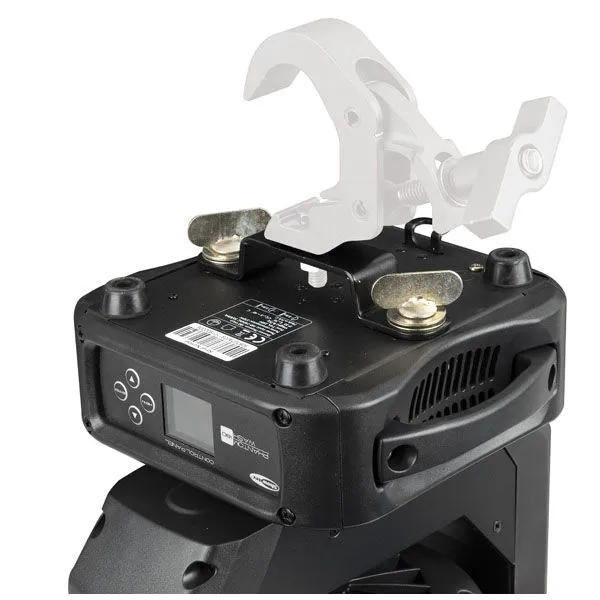

Quick Lock Brackets

Specifications

Output Lux @ 3m - 14200 (7°)
Beam Angle - 7°-50° (motorized)
Light Source - 12 x 15W RGBW LED€™s
Electrical Input voltage - 100~240VAC, 50/60Hz (auto ranging)
Power consumption - 220W max.

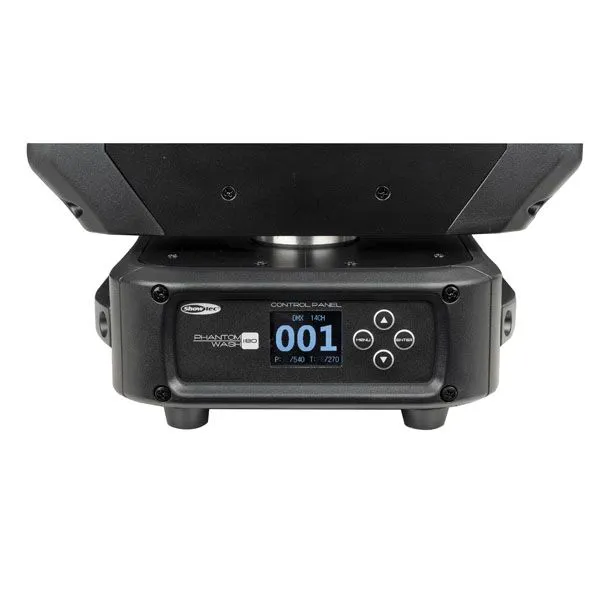

Control - On-Board Full colour display
Control Protocol - DMX512, Auto, Sound, Manual, Master-Slave Control
Personality - Advanced 29ch /Basic 14ch
Dimmer - 0-100%
Strobe - 0-20Hz
Zoom - Motorized
Movement - Pan 540° Tilt 270°
Pan/Tilt resolution - 16 bit Special Pan / Tilt movement blackout, User-selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement
Physical Colour - Black
Housing - Metal & Flame-retardant plastic

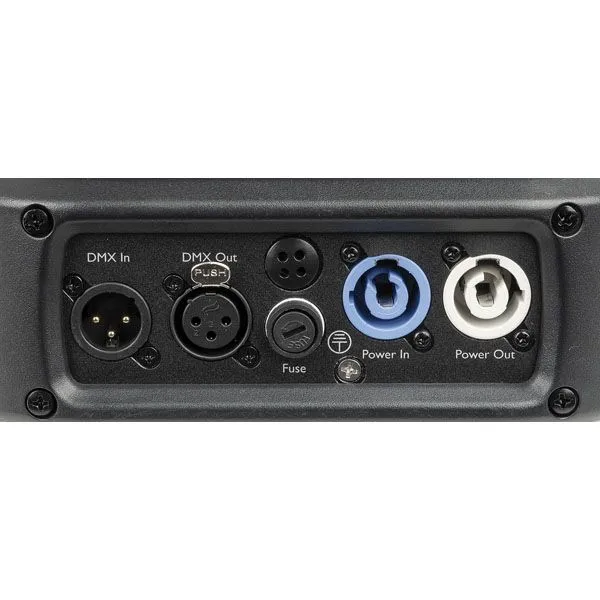

Data Connection - XLR 3p in- & output
Power connection - Pro Power in- & output
Dimensions - (WxDxH) 290 x 205 x 370 mm
Weight - 8,5Kg
Certification and Safety Certification - CE
Max. ambient Temp. - 40°C
